Butane Tank 148 Repair, Fifth South Pars Gas Refinery

Major repair of a double-wall butane tank and associated systems through testing and readiness for recommissioning.

ClientFifth South Pars Gas Refinery / Sahand Sazeh Alborz

ConsultantFifth Refinery Maintenance Department

LocationSouth Pars, Iran

ContractMajor repair and recommissioning

Recorded periodAwarded 16 Jan 2024; twelve-month base term, extended to 19 Feb 2026

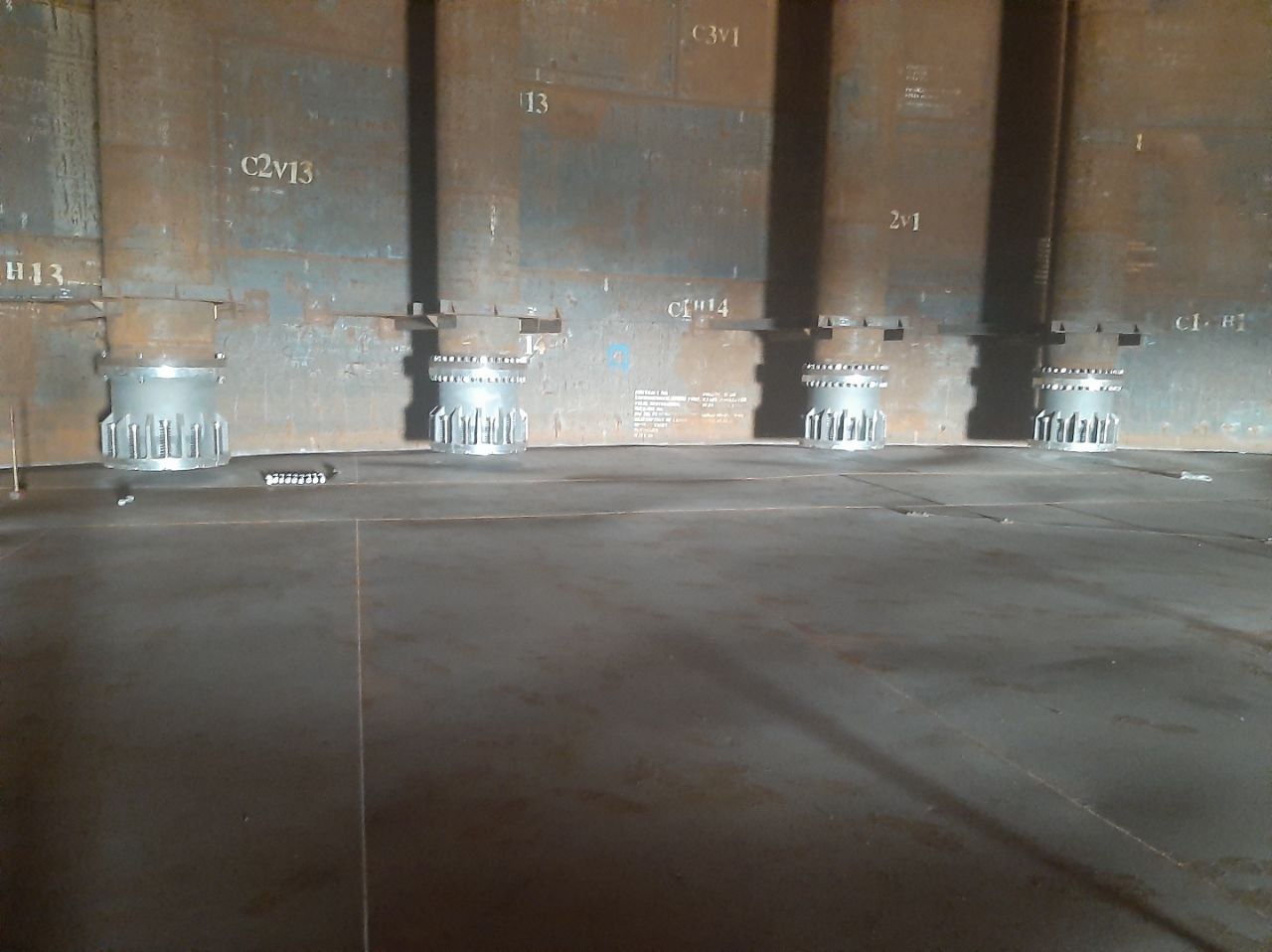

Project images

The work as delivered

Scope of work

Principal project responsibilities

Access opening and removal of inter-wall insulation
Replacement and repair of inner-tank floor and shell plates
NDT, vacuum-box, hydrostatic and pneumatic testing
Insulation reinstatement and TGS/LDS system repair
Installation and pre-commissioning of the cryogenic LPG loading and circulating pumps
Execution and communication testing of the DCS, ESD, MCC and fire and gas systems
Pre-commissioning and commissioning of the dry-chemical extinguishing package
Tank calibration and performance certification with third-party attendance

Selected technical data

Documented project information

Equipment tag: 148-T-102
Tank type: Double-wall butane tank
Testing: NDT, vacuum box, hydrotest and pneumatic test
Rotating equipment: Cryogenic LPG loading and circulating pumps
Safety systems: Fire and gas detection and a dry-chemical extinguishing package
Control integration: DCS, ESD, MCC and vibration monitoring
Final acceptance: Tank calibration and a performance certificate issued by a third-party authority

Project records are compiled from SKP's own contract and engineering documentation. Current status and time-sensitive details are shown only where they have been formally confirmed.

Cryogenic storage

Double-wall LPG storage tanks

A double-wall LPG storage tank pairs an inner tank holding the refrigerated product with an outer tank that provides protection, structural support, insulation containment and — depending on the selected design — secondary containment. SKP covers the full cycle for these tanks, from conceptual engineering through to the routine maintenance and rehabilitation of units already in service.

Lifecycle services

Conceptual, basic and detailed engineering
Material and equipment procurement
Construction and installation
Testing and commissioning
Inspection and condition assessment
Troubleshooting and repair
Preventive and corrective maintenance
Rehabilitation and upgrading of existing tanks and systems

Equipment and systems

Cryogenic LPG pumps
Tank gauging and inventory measurement systems
Level, pressure and temperature instrumentation
Cryogenic insulation systems
Inner-tank and inter-wall insulation
Piping, cryogenic valves, fittings and accessories
Control, monitoring, alarm and emergency shutdown systems
Electrical and instrumentation systems
Fire and gas detection systems
Associated mechanical, civil, electrical and instrumentation works
